Gantt charts are “one of the most widely used management tools for project scheduling and control” In the following table there are seven tasks, labeled a through g. This method maximizes the float time available for all tasks. Gantt charts are usually created initially using an early start time approach, where each task is scheduled to start immediately when its prerequisites are complete. This also means that creating a Gantt chart involves some estimation about how long each project will take and create a structure for the team to follow in order to reach their goals. Gantt charts represent a commitment to a timeline for the project by a team. There is not one correct way to create a Gantt chart, but the chart should include clear dates and separate major milestones in the project. Gantt charts can be used to show current schedule status using percent-complete shadings and a vertical “TODAY” line as shown in the graphic above.

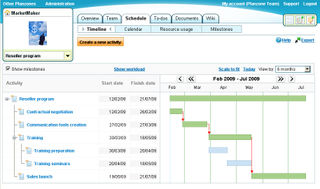

Modern Gantt charts also show the dependency relationships between activities. Terminal elements and summary elements constitute the work breakdown structure of the project. This chart lists the tasks to be performed on the vertical axis, and time intervals on the horizontal axis.The width of the horizontal bars in the graph shows the duration of each activity. Gantt charts illustrate the start and finish dates of the terminal elements and summary elements of a project. IntroductionĪ Gantt chart is a type of bar chart that illustrates a project schedule. 12 Gantt Charts Content for this chapter was adapted from Wikipedia, the free encyclopedia A Gantt chart showing three kinds of schedule dependencies (in red) and percent complete indications.
